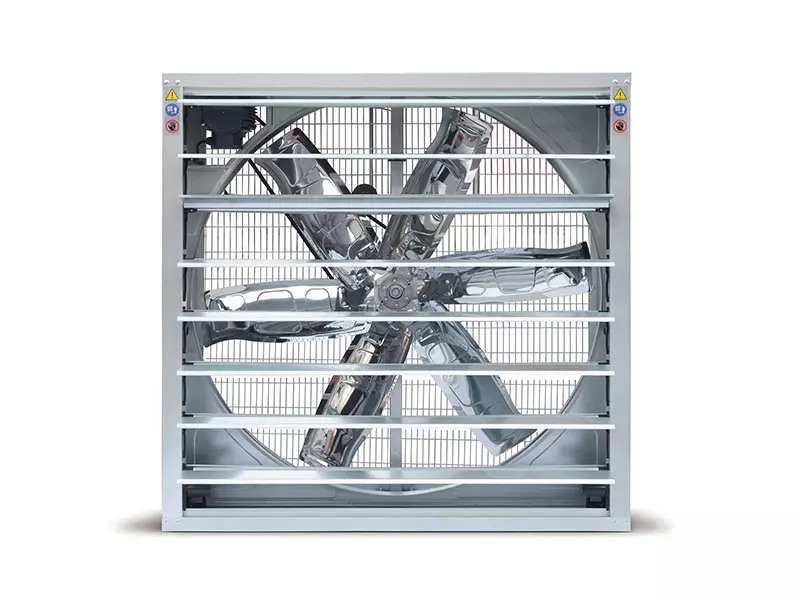

Push-Pull type exhaust fan
hiddenValue
Details Introduction
HY series High class fan is mainly made up of blade, Centrifugal Opening Device, motor , outer frame, protectingl nets, supporting frames, shutters. It is made based on aerodynamic, effectively reduce the wind resistance. The majorl parts are made of galvanized steel sheets and Stainless steel sheets. All the products are widely used in various types of buildings as farms , greenhouses, factory building.
Technical parameter
| Model specifications | Diameter biades (mm) |
Frequency (Hz) |
Motor rotational speed rpm |
Air flow (m³/h) |
Import power (W) |
Noise decibels | Total pressure (Pa) |
Rated voltage (V) |
Height(mm) | Width(mm) | Thickness(mm) |
| HYFB-800 | 710(29in) | 50 | ≥1400 | 26000 | 370 | ≤64 | 60 | 380 | 800 | 800 | 450 |
| HYFB-1000 | 900(36in) | 50 | ≥1400 | 32000 | 750 | ≤64 | 70 | 380 | 1000 | 1000 | 450 |
| HYFB-1100 | 1000(44in) | 50 | ≥1400 | 40000 | 750 | ≤64 | 70 | 380 | 1100 | 1100 | 450 |
| HYFB-1380 | 1270(50in) | 50 | ≥1400 | 44800 | 1100 | ≤64 | 56 | 380 | 1380 | 1380 | 450 |
| HYFB-1530 | 1400(56in) | 50 | ≥1400 | 58000 | 1500 | ≤64 | 60 | 380 | 1530 | 1530 | 450 |
